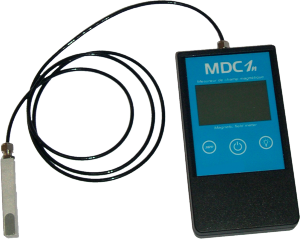

MDC1n²
Tangential field meter suitable for the control of magnetic particle testing benches
Designed to check the proper functioning of magnetic particle testing benches. The MDC1 n² is not designed to determine the peak value.
Detection Characteristics
Hall effect sensor
Measurement range: +/- 470A/cm
Units: A/cm, Oe, mT, Gauss
Résolution d’affichage : max 0,1 A/cm
Frequency range: from 40Hz to 410Hz
Mechanical and Environmental Characteristics
Housing Dimensions 120 x 65 x 22 mm
Probe Dimensions: straight 60.5 x 8 x 8 mm – angled 46 x 17 x 8 mm
Weight: 180 g with battery
IP code: IP54
Electrical Characteristics
Power supply: 9 V battery
Battery life: up to 20 hours
A converter is available to enable the conversion between your units:
